AI Architecture Diagram Generator
Describe your system's components and how they talk to each other. Get a layered architecture diagram.
Try one of these — click to open in the generator
Architecture diagram for a web app on AWS: CloudFront CDN in front of an Application Load Balancer, routing to an ECS Fargate service running the API, which reads and writes to an RDS Postgres database and caches hot reads in ElastiCache Redis. Static assets served from S3.
Try it →Microservices architecture: API gateway in front of order service, payment service, and inventory service. Order service publishes events to Kafka, consumed by inventory service and a notification service. Each service owns its own Postgres database.
Try it →Serverless data pipeline: S3 upload triggers a Lambda that validates the file and writes raw data to a data lake in S3, publishing an event to EventBridge. A second Lambda consumes that event, transforms the data, and loads it into a Redshift warehouse for analytics.
Try it →Mobile app backend architecture: iOS and Android clients call an API gateway, which forwards to an auth service backed by Cognito, and a core API service backed by DynamoDB. Push notifications go through SNS. Static content is served from CloudFront and S3.
Try it →When to use AI Architecture Diagram Generator
System design docs & RFCs
Before you write the detailed sections, give reviewers the shape of the system in one diagram. An architecture diagram at the top of an RFC saves ten Slack threads asking 'wait, what talks to what?'
Cloud infrastructure planning
Sketch a proposed AWS/GCP/Azure setup before you provision anything. Reviewers can spot a missing cache layer or an unnecessary hop faster on a diagram than in a Terraform plan.
Onboarding & architecture overviews
New engineers ask 'how does a request flow through this system' on day one. An architecture diagram in the README answers it before they open a single file.
Security & vendor review
Auditors and security reviewers want to see the trust boundaries — what's public-facing, what's internal, where data crosses a boundary. A labeled architecture diagram is the fastest way to answer 'show me the attack surface.'
Migration & modernization planning
Moving from a monolith to microservices, or from self-hosted to managed services? A before/after architecture diagram makes the migration plan concrete and reviewable.

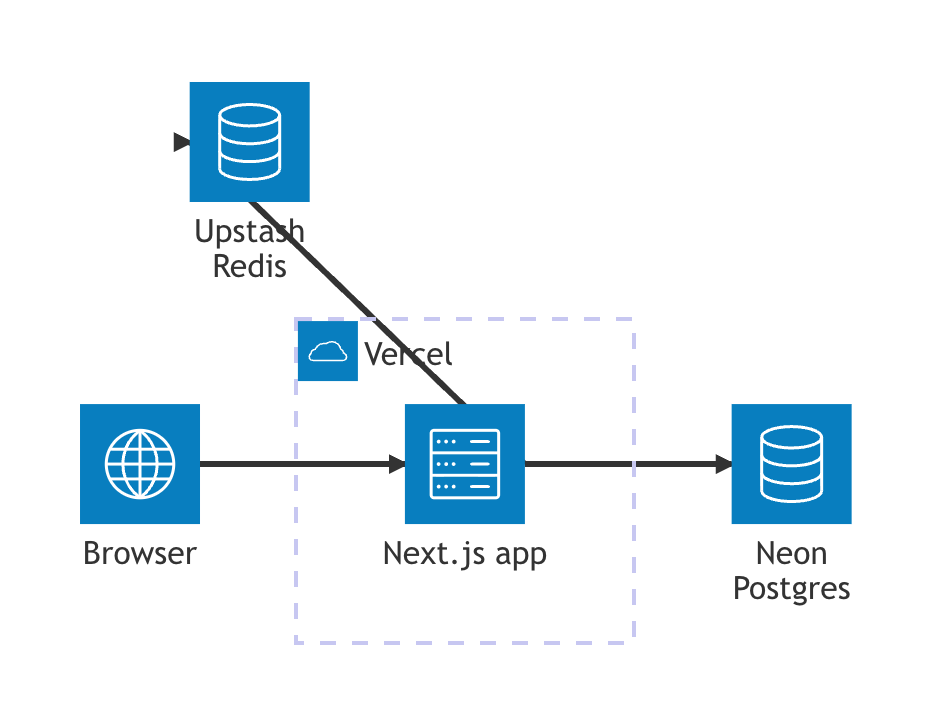

Building an architecture diagram in chat mode, from three component names
The thing an architecture diagram has to get right — which box talks to which box, and where the hosting boundary sits — is exactly what you leave out of a one-line prompt. Chat mode asks about the boundary, because that one decides the shape of the picture, then draws the rest and tells you what it assumed. Here is a small link shortener, started from three component names and nothing else.
- Put Redis in the read path as a slug → URL cache, with Postgres on a miss — you never said what it was for
- Added a "Browser" component as the entry point — you described only the backend
- Labelled the stores "Upstash Redis" and "Neon Postgres" instead of plain Redis and Postgres
- Hung Redis and Postgres off the app as two peers, rather than chaining one behind the other

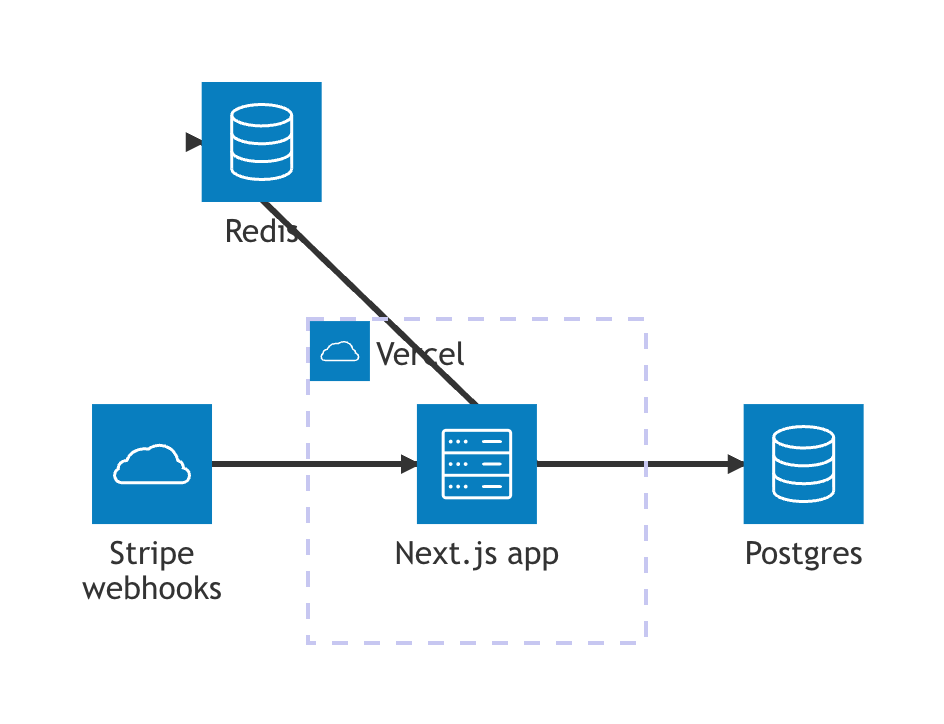

Four messages produced a diagram with a hosting boundary, a cache that sits beside the database rather than in front of it, and an inbound webhook — none of which were in the opening line. Note how small it stayed: four boxes, flat, no layers. That is the shape architecture-beta draws well, and it is why chat mode switches to a flowchart with subgraphs once a system grows a gateway and three services behind it.
Deep dive
Architecture diagrams answer one question at a glance: what are the pieces of this system, and how do they talk to each other? Reach for one when you're writing a design doc that needs a birds-eye view before it dives into detail, when you're onboarding an engineer who needs "where does a request go" in ten seconds, or when you're presenting a proposed system to stakeholders who won't read a wall of bullet points.
Where architecture diagrams differ from flowcharts: a flowchart shows a process unfolding over time (step 1, then step 2, then a decision); an architecture diagram shows a system's static shape (this service calls that service, this queue sits between these two). The AI reads your description of components — gateways, services, databases, queues, caches, CDNs — and lays them out in layers (edge, compute, data) with labeled connections, using stadiums, cylinders, and rectangles to distinguish node kinds the way a whiteboard sketch would.
One honest limitation: the diagram uses generic labeled shapes, not official AWS/GCP/Azure icon sets — Mermaid doesn't ship vendor iconography, so "RDS" or "S3" show up as clearly labeled cylinder/rectangle nodes rather than branded logos. For a quick internal design doc or an RFC that needs to communicate shape and data flow, this is exactly enough; for a client-facing slide deck that needs official cloud icons, you'll want to trace the generated layout into a tool like Lucidchart afterward.
Ready to try it yourself?
Frequently asked questions
How does the AI architecture diagram generator work?
You describe your system in plain English — the services, databases, queues, and gateways involved and how they connect — and the AI generates a Mermaid flowchart-style diagram with components grouped into layers (edge, compute, data) and labeled connections. There's no separate 'architecture' rendering engine; under the hood it uses the same flowchart syntax with conventions (cylinders for storage, subgraphs for layers) tuned specifically for system diagrams.Does it use official AWS, GCP, or Azure icons?
No. Mermaid doesn't ship vendor icon sets, so components render as clearly labeled shapes — cylinders for databases and storage, rectangles for compute and services, stadiums for gateways — rather than branded cloud logos. This keeps the diagram provider-agnostic and fast to generate; if you need official iconography for a client deck, use this as your first-draft layout and re-skin it in a tool like Lucidchart or draw.io.Can I describe a multi-cloud or hybrid system?
Yes. The AI doesn't care which cloud a component belongs to — describe an on-prem database talking to a cloud-hosted API, or a system spanning AWS and GCP, and it draws the connections as described. Naming the provider in your prompt (e.g. 'S3', 'GCS', 'on-prem Postgres') helps the AI label nodes accurately.How detailed can the architecture diagram get before it becomes unreadable?
Past roughly 15-20 components in one diagram, readability drops fast — the same rule of thumb as flowcharts. For large systems, describe one bounded context or one layer at a time (e.g. 'just the payment subsystem') and generate several focused diagrams rather than one sprawling map.Can I edit the generated diagram?
Yes. The split view shows the Mermaid source next to the live preview — add a service, rename a connection, or regroup layers by editing text. If you'd rather regenerate, add a sentence to your original prompt and rerun it.Is the architecture diagram generator free?
Yes, free with no signup. A generous per-IP daily rate limit (enforced via Upstash Redis, consistent across all Vercel edge regions) prevents abuse without affecting normal usage. Export as SVG for docs or PNG for slides, straight from the preview status bar.
Prefer a conversation?
Not sure how to phrase your prompt? Chat mode lets AI ask 2-3 clarifying questions about actors, events, and edge cases — then draws.
